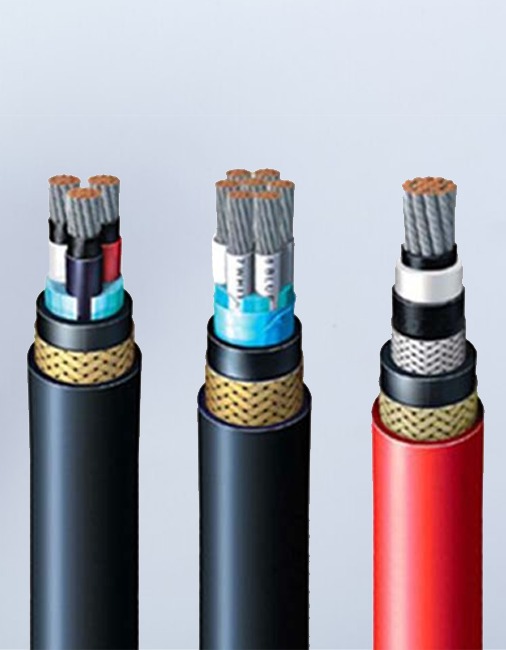

LT Power Cables

These cables offer a comprehensive range of robust and hard-wearing Low Voltage Single or multicore armoured and un armoured cables which are manufactured in accordance with IS 1554 Part - 1

Specifications
  • Conductor:Electrolytic Annealed stranded Bare copper as per IS 8130. Class-2.
  • Insulation Material: PVC Type - A as per IS 5831 / Option: HR PVC (Type-C) as per IS 5831
  • Core Colours:Up to 12 cores by colour coding & more than 12 cores number printing on core
  • Inner Sheath:PVC / PVC tape as per IS 1554 (P-1)
  • Outer Sheath: PVC Type ST-1 as per IS 5831 PVC Type ST- 2 as per IS 5831, FR Type / FRLS Type / LSZH (Low smoke zero halogen)) Cable Colour: Black (Options: Any other colour as per requirement)
  • Cable Colour: Black (Options: Any other colour as per requirement)
  • Packing:Standard packing of 500 mtr in coil for Unarmoured cables. 1000 metres drums or 250 metres Coils for Armoured cables
These cables act as a reliable connecting medium in:
  • Power and Control Panels
  • Cabinets and Switchgears
  • Distribution Boards and Electrical Installations

They are also suitable for various applications, including stationary and static appliances, motors, and other single-phase connections ensuring efficient performance and dependable power flow across every setup.

Area (SQ.mm) No. & Size Of Wire Resistance @20ºC Insulation Thickness I/S Thickness O/S Thickness Overall DIA CURRENT RATING IN GROUND CURRENT RATING IN AIR
2x1.5 7/0.53 12.1 0.8 0.5 1.5 13.2 23 20
3x1.5 7/0.53 12.1 0.8 0.5 1.5 13.7 21 17
4x1.5 7/0.53 12.1 0.8 0.5 1.5 14.6 21 17
5x1.5 7/0.53 12.1 0.8 0.5 1.5 15.5 17 14
6x1.5 7/0.53 12.1 0.8 0.5 1.5 16.4 15 13
7x1.5 7/0.53 12.1 0.8 0.5 1.5 16.4 14 13
10x1.5 7/0.53 12.1 0.8 0.7 1.6 19.4 13 11
12x1.5 7/0.53 12.1 0.8 0.7 1.6 19.9 13 11
14x1.5 7/0.53 12.1 0.8 0.7 16 20.8 11 10
16x1.5 7/0.53 12.1 0.8 0.7 1.6 21.6 11 9
19x1.5 7/0.53 12.1 0.8 0.7 1.6 22.6 10 9
24x1.5 7/0.53 12.1 0.8 1 1.7 26.6 9 8
27x1.5 7/0.53 12.1 0.8 1 1.7 27.1 9 8
30x1.5 7/0.53 12.1 0.8 1 1.7 27.9 9 7
37x1.5 7/0.53 12.1 0.8 1 1.7 29 8 7
44x1.5 7/0.53 12.1 0.8 1 1.7 33 7 6
2x2.5 7/0.67 12.1 0.9 0.7 1.5 14.4 32 27
3x2.5 7/0.67 7.41 0.9 0.7 1.5 15 27 24
4x2.5 7/0.67 7.41 0.9 0.7 1.5 16 27 24
5x2.5 7/0.67 7.41 0.9 0.7 1.5 17.1 23 19
6x2.5 7/0.67 7.41 0.9 1 1.5 18.2 22 18
7x2.5 7/0.67 7.41 0.9 0.5 1.5 18.2 20 17
10x2.5 7/0.67 7.41 0.9 0.5 1.6 21.8 18 15
12x2.5 7/0.67 7.41 0.9 0.5 1.6 22.4 17 14
14x2.5 7/0.67 7.41 0.9 0.5 1.6 23.4 16 13
16x2.5 7/0.67 7.41 0.9 0.5 1.6 24.5 15 12
19x2.5 7/0.67 7.41 0.9 0.5 1.7 26.4 16 12
2x4 7/0.85 7.4 1 0.5 1.5 15.9 44 35
3x4 7/0.85 7.41 1 0.5 1.5 16.6 36 30
4x4 7/0.85 4.7 1 0.5 1.5 17.8 36 30
2x6 7/1.06 4.7 1 0.5 1.5 17.1 50 45
3x6 7/1.06 4.7 1 0.5 1.5 17.8 45 39
4x6 7/1.06 3.11 1 0.6 1.6 19.7 45 39
2x10 7/1.35 3.11 1 0.6 1.6 19.4 70 60
3x10 7/1.35 3.11 1 0.6 1.6 19.6 60 52
4x10 7/1.35 1.84 1 0.7 1.7 21.6 60 52
2x16 7/1.70 1.84 1 0.7 1.7 22 90 78
3x16 7/1.70 1.84 1 0.7 1.7 22.2 77 66
4x16 7/1.70 1.16 1 0.8 1.7 24.2 77 66
3x25 7/2.40 1.16 1 1 1.8 26.8 99 90
4x25 7/2.40 0.73 1 1 1.8 29.1 99 90
3x35 7/2.52 0.53 1 1 1.8 28.5 120 110
4x35 7/2.52 0.53 1 1 1.8 32 120 110
