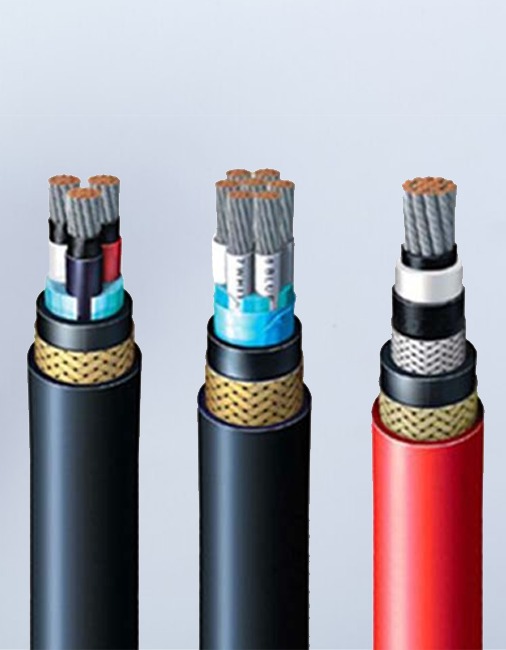

LV Control Cables

These cables are designed for a wide range of industrial process automation applications, including signal transmission, measurement, control and regulation. These control cables are often referred to by the application, such as machinery supply cable, motor cable and robotics cable. They are also known as multi-core cables and control flexible cables These cables are also offered with GI armour for underground application.

Specifications
  • Conductor: Electrolytic Annealed stranded Bare copper as per IS 8130.
  • Voltage Grade: Up to and including 1100V
  • Insulation: TYPE, A & D as per IS 5831
  • Variants:PVC variant Type A for insulation & ST-1 & for sheathing FR (Flame retardant),
  • Type D for insulation & ST-3 (FR) & for sheathing FRLS (Flame retardant low smoke)
  • Packing: Standard packing of 100 mtr. in coil. Longer length available on request
  • '
  • Colours: Standard Black, optional colours Available
These cables act as a reliable connecting medium in:
  • Power and Control Panels
  • Cabinets and Switchgears
  • Distribution Boards and Electrical Installations

They are also suitable for various applications, including stationary and static appliances, motors, and other single-phase connections ensuring efficient performance and dependable power flow across every setup.

Available with ROHS, UV Resistant and Anti rodent properties

Area (SQ.mm) Construction (No of strands/ Dia in mm) Insulation Thickness Nominal (mm) Core Dia (mm) Nominal Sheath Ticknesss 2C (mm) Nominal Sheath Ticknesss 3C (mm) Nominal Sheath Ticknesss 4C (mm) Overall Dia.Approx 2C (mm) Overall Dia.Approx 3C (mm) Overall Dia.Approx 4C (mm) Max.DC Resistance at 20ºC Current Rating
0.5 16/0.2 0.6 2.2 0.9 0.9 0.9 6.2 6.6 7.2 39 4
0.75 24/0.2 0.6 2.5 0.9 0.9 0.9 6.8 7.2 7.9 26 7
1 32/0.2 0.6 2.6 0.9 0.9 0.9 7 7.5 8.1 19.5 11
1.5 30/0.25 0.7 2.9 0.9 0.9 0.9 7.6 8.1 9 13.3 14
2.5 50/0.25 0.8 3.5 1 1 1 9 9.6 10.5 7.98 19
4 56/0.3 0.8 4.3 1 1 1 10.6 11.3 12.4 4.95 26
6 84/0.3 0.8 5.1 1.15 1.15 1.4 12.6 13.4 15.2 3.3 33
10 140/0.3 1 6.6 1.4 1.4 1.4 16 17 18.8 1.91 45
16 126/0.4 1 8 1.4 1.4 1.4 18.8 20.1 22.1 1.21 16
25 196/0.4 1.2 10 2 2 2 24 25.6 28.2 0.78 75
35 276/0.4 1.2 11.1 2 2 2 26.3 28 31 0.554 95
50 396/0.4 1.4 13.4 2 2 2 30.9 33 36.5 0.386 125
